Medical Device Safety Testing Equipment
ED&D medical device safety testing equipment includes a medical bed loading pad, cone and cylinder entrapment tools, and a wedge tool for loading and entrapment evaluations.
Medical Bed Loading Tool
Test-method note: these tools are used as part of a test setup but do not determine compliance by themselves. Confirm the governing clause, bed configuration, load placement, opening location, fixture arrangement, and other method requirements before testing.

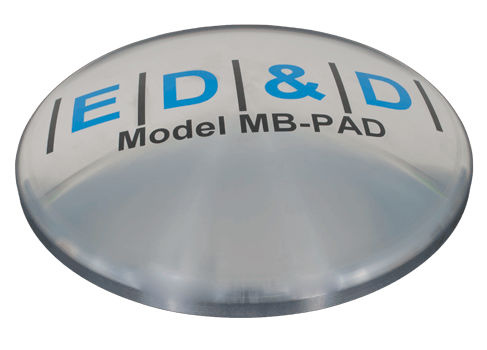

MB-PAD Loading Pad Tester for Medical Beds
The MB-PAD Loading Pad Tester for Medical Beds is used for simulated loading during bed testing. It provides an interface between the applied load and the bed surface.
Used with evaluations associated with IEC 60601-2-52 and the broader IEC 60601-1 framework.
Medical Bed Entrapment Assessment Tools

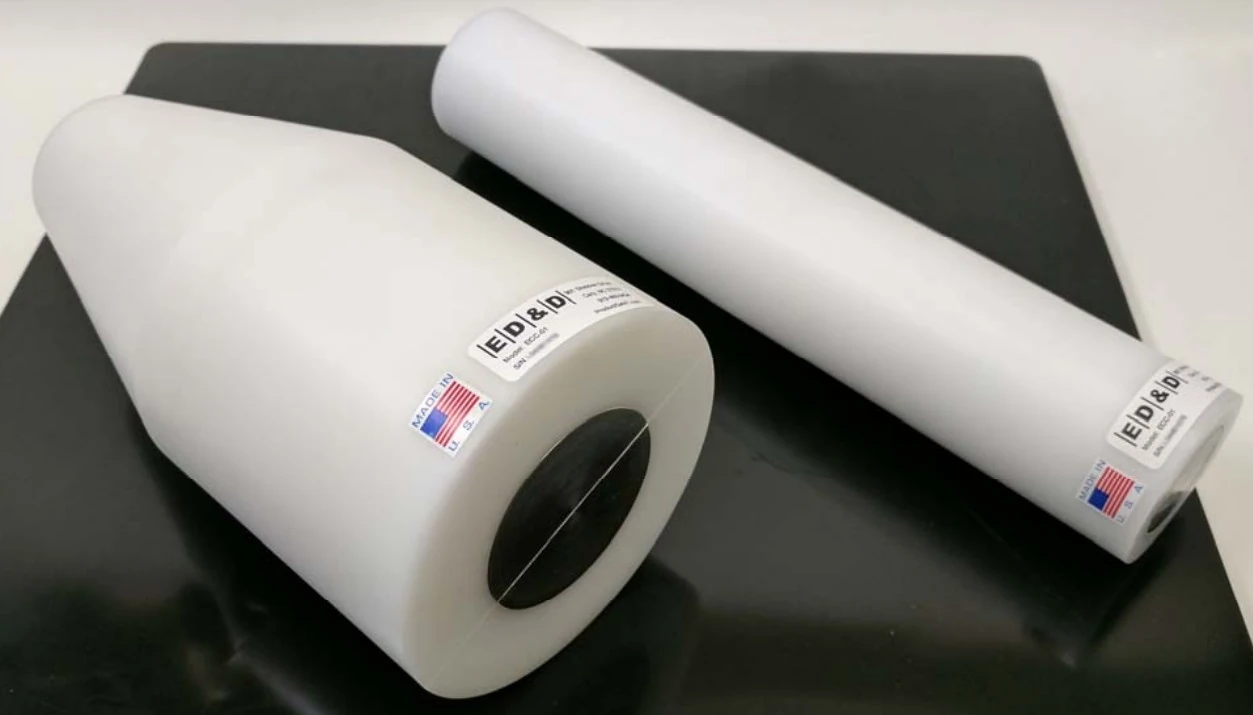

ECC-01 Entrapment Cone & Cylinder Tool Set
The ECC-01 Entrapment Cone & Cylinder Tool Set includes a Cone Tool and Cylinder Tool for evaluating entrapment risks in bed systems during IEC 60601-2-52 testing.
Each ECC-01 includes a NIST-traceable Certificate of Calibration with measurement uncertainty data. Optional ISO/IEC 17025 accredited calibration is available.

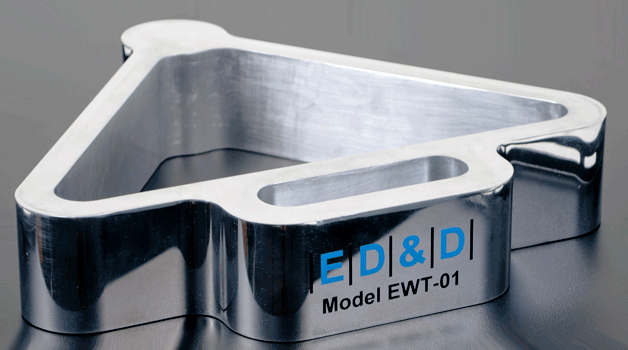

EWT-01 Entrapment Wedge Tool
The EWT-01 Entrapment Wedge Tool is used to assess neck-entrapment risk in V-shaped openings in medical beds. It is manufactured from polished aluminum.
Used with wedge-based opening evaluations associated with IEC 60601-2-52.
Medical Bed Safety Equipment Comparison
| Product | Purpose | Description |
|---|---|---|
| MB-PAD | Simulated loading during bed testing | Loading pad interface between the applied load and bed surface |
| ECC-01 | Cone and cylinder entrapment evaluation | Includes Cone Tool, Cylinder Tool, and NIST-traceable calibration |
| EWT-01 | Assessment of V-shaped openings | Polished-aluminum wedge tool |
Include the bed type, applicable standard, and required test method with your inquiry.
