Automated Digital Hipot Testers

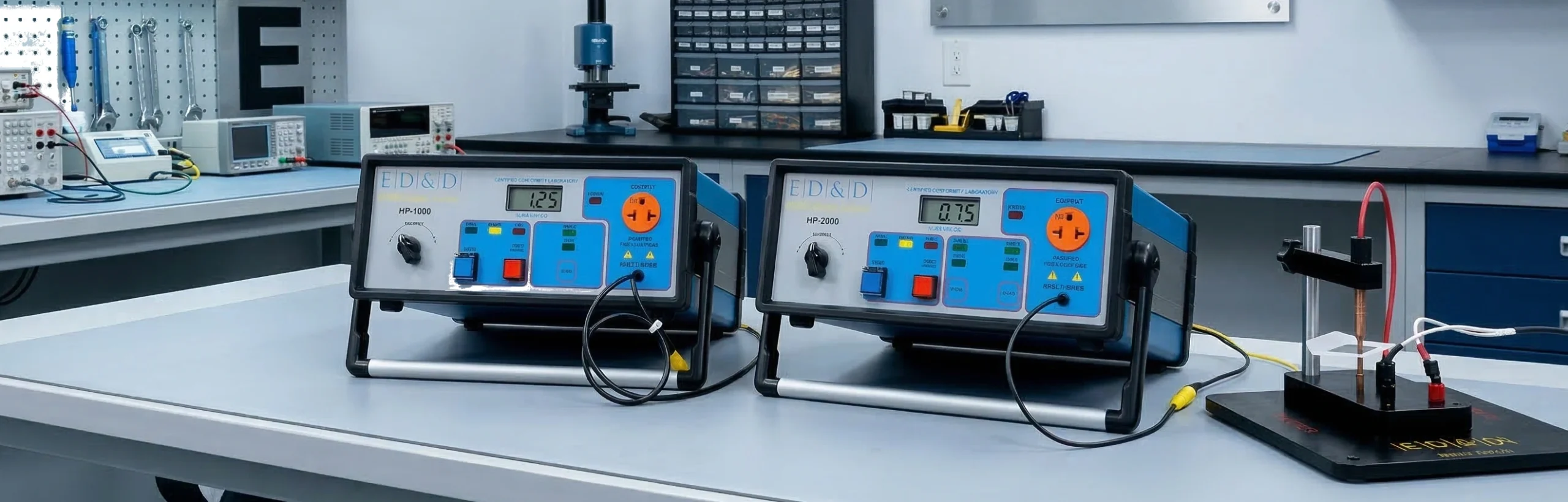

ED&D automated digital hipot testers provide dielectric withstand testing for electrical safety laboratories, compliance testing environments, and production test stations. The HP-1000 provides AC hipot testing, while the HP-2000 provides AC and DC hipot capability. Both Millennium Series models provide single-button test initiation and visible and audible pass/fail indication. The Check-MATE HP provides daily functional verification of compatible ED&D hipot testers.
Single-Button Operation
Single-button test initiation with visible and audible pass/fail indication.
AC and AC/DC Models
The HP-1000 provides AC-only output. The HP-2000 provides AC and DC output.
Provide the required AC or AC/DC capability, test duration, supply voltage, accessory requirements, and calibration documentation requirements.
Automated Digital Hipot Testers for Electrical Safety Testing
A hipot tester, also called a dielectric withstand tester, applies a high potential between isolated conductive parts to evaluate insulation integrity and determine whether a product withstands the specified test voltage without breakdown or unacceptable leakage.
The ED&D Millennium Series models provide single-button test initiation, visible and audible pass/fail indication, a safety-protected start switch, selectable automatic test timing, and a low-current ground continuity test function.
The ED&D Check-MATE HP provides daily functional verification of compatible ED&D hipot testers.
Technical note: products containing EMI filters may require DC hipot testing. Confirm the permitted test method and voltage with the applicable product safety standard.

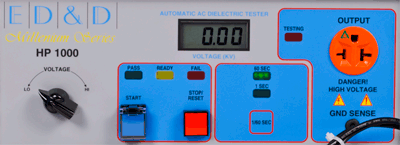

HP-1000 Automated AC Digital Hipot Tester
The ED&D HP-1000 is an automated AC digital hipot tester with 100–3000 VAC True RMS output, selectable automatic test timing, arc detection, a 10 mA trip-current limit, and visible and audible pass/fail indication.
Product Details
- Single-button test initiation
- Visible and audible PASS/FAIL indication
- Selectable automatic test time: 1 second or 60 seconds
- Safety-protected start switch
- Low-current ground continuity test function
- Verify test voltage, duration, trip-current limit, and connection method against the applicable product safety standard
- Supplied with an ISO/IEC 17025 accredited calibration certificate; source product documentation identifies ANAB accreditation
Ordering note: Order model HP-1000S if you require a 2-second or 60-second test time. If you require both 1-second and 60-second tests, specify that you need selectable test time so the unit can be configured accordingly.
HP-1000 Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Test Voltage | 100–3000 VAC True RMS | Accuracy | ± 1% Full Scale |
| Input Current | 1 A | Weight | 15 lbs |
| Input Frequency | 50–60 Hz | Input Voltage | 100–200 or 220–240 VAC (Specify when ordering) |
| Test Time | 1 sec or 60 sec (selectable) | Dimensions | 12" × 11" × 5" |
| Failure Indication | ARC detection / Trip current limit 10 mA |

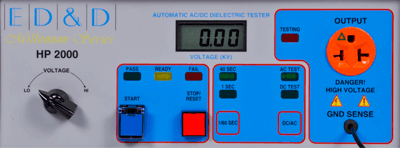

HP-2000 Automated AC/DC Digital Hipot Tester
The ED&D HP-2000 is an automated AC/DC digital hipot tester with 0–3000 VAC True RMS and 100–4250 VDC output, selectable automatic test timing, arc detection, a 10 mA trip-current limit, and visible and audible pass/fail indication.
Product Details
- Single-button test initiation
- Visible and audible PASS/FAIL indication
- Selectable automatic test time: 1 second or 60 seconds
- Safety-protected start switch
- Low-current ground continuity test function
- Verify test voltage, duration, trip-current limit, and connection method against the applicable product safety standard
- Supplied with an ISO/IEC 17025 accredited calibration certificate; source product documentation identifies ACLASS accreditation
AC/DC application note: AC testing of products containing EMI filters can produce current through Y capacitors that affects the measured current or stresses filter components. Use DC testing only when permitted by the applicable product safety standard, and use the voltage specified by that standard.
Ordering note: Order model HP-2000S if you require a 2-second or 60-second test time. If you require both 1-second and 60-second tests, specify that you need selectable test time so the unit can be configured accordingly.
HP-2000 Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Test Voltage | 0–3000 VAC True RMS 100–4250 VDC |
Accuracy | ± 1% Full Scale |
| Input Current | 1 A | Weight | 15 lbs |
| Input Frequency | 50–60 Hz | Input Voltage | 100–200 or 220–240 VAC (Specify when ordering) |
| Test Time | 1 sec or 60 sec (selectable) | Dimensions | 12" × 11" × 5" |
| Failure Indication | ARC detection / Trip current limit 10 mA |
Check-MATE HP Hipot Functional Tester

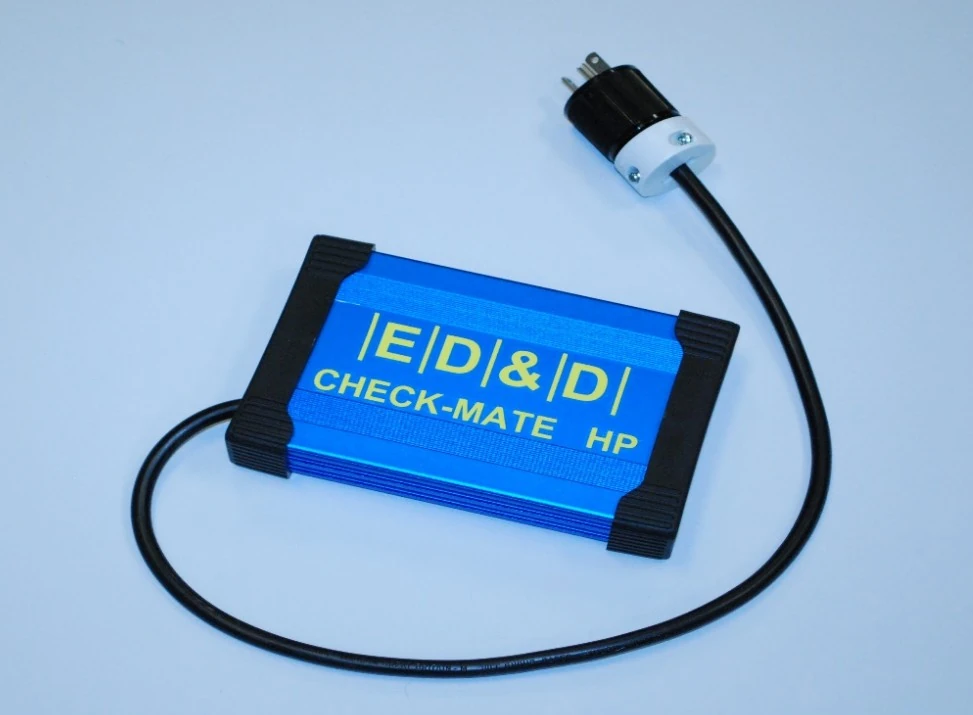

Check-MATE HP functional verification device with integral output plug.
The ED&D Check-MATE HP connects directly to the hipot output receptacle and simulates a controlled electrical fault condition for daily functional verification of compatible ED&D hipot testers.
The expected failure trip threshold is 1.20 kV AC (±5%). The device is intended for documented daily functional checks and is not a substitute for calibration.
Product Details
- Daily functional verification of compatible ED&D hipot testers
- Simulates a controlled electrical fault condition
- Integral output plug connects directly to the hipot output receptacle
- Compact enclosure
- Dimensions: 7" × 4.5" × 1.5"
- Supports documented daily verification procedures
Check-MATE HP Technical Specifications
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Expected Failure Trip Threshold | 1.20 kV AC (±5%) | Dimensions | 7" × 4.5" × 1.5" |
| Connection | Integral output plug | Enclosure | Compact |
| Function | Simulates a controlled electrical fault condition | Use | Daily functional verification |
Hipot Tester Accessories
HPA-01 Automated Hipot Accessory Device
The HPA-01 Automated Hipot Accessory Device is intended for testing thin insulating materials for dielectric voltage withstand strength when connected to a hipot tester. Typical examples include transformer insulating materials, circuit board insulation, and related thin insulation samples.
Product Details
- For dielectric withstand testing of thin insulating materials
- Source product documentation references IEC 60065, EN 60065, and UL 6500
- Rated 5 kVAC / 5 kVDC
Hipot Tester Comparison
| Feature | HP-1000 | HP-2000 |
|---|---|---|
| Primary Test Type | AC hipot testing | AC and DC hipot testing |
| AC Output | 100–3000 VAC True RMS | 0–3000 VAC True RMS |
| DC Output | No | 100–4250 VDC |
| Low Current Ground Continuity | Included | Included |
| Primary Application | General AC dielectric withstand testing | Applications requiring AC and DC output, including permitted DC testing of EMI-filtered products |
Frequently Asked Questions
What does a hipot tester do?
A hipot tester applies a high voltage between isolated conductive parts to verify insulation integrity and confirm dielectric withstand capability without electrical breakdown.
What is the difference between the HP-1000 and HP-2000?
The HP-1000 is an automated AC digital hipot tester, while the HP-2000 is an AC/DC digital hipot tester that adds DC test capability for applications where AC-only testing is not ideal.
When should a lab use DC hipot testing instead of AC?
DC hipot testing may be used for products containing EMI filters when permitted by the applicable product safety standard. AC testing can produce current through Y capacitors that affects the measured current or stresses filter components.
Do these hipot testers include calibration documentation?
Yes. Both models are supplied with an ISO/IEC 17025 accredited calibration certificate for traceable laboratory documentation.
What does the Check-MATE HP verify?
The Check-MATE HP simulates a controlled electrical fault condition for daily functional verification of compatible ED&D hipot testers. Its expected failure trip threshold is 1.20 kV AC (±5%). It is not a substitute for calibration.
Can the HPA-01 be used for testing thin insulating materials?
Yes. The HPA-01 accessory device is intended for dielectric voltage withstand testing of thin insulating materials such as transformer insulation and circuit board insulation when used with a compatible hipot tester.
Include the model, required output type, test duration, input voltage, and accessory requirements.
Typical Hipot Testing Applications
These instruments are used for dielectric withstand testing during product development, production verification, incoming inspection, and electrical safety compliance testing.
- Household and commercial appliances evaluated to IEC 60335
- Medical electrical equipment evaluated to IEC 60601
- Laboratory, industrial, and control equipment evaluated to IEC 61010
- Power supplies, transformers, and insulated assemblies
- Products requiring dielectric withstand verification between isolated conductive parts
- EMI-filtered assemblies when DC testing is permitted by the applicable standard
- Legacy information technology equipment evaluated to IEC 60950
- Solar and photovoltaic equipment programs referencing UL 1703
- Production quality assurance and final inspection
