Test Probe Kits

Q: Can I buy individual probes instead of a full kit?

Yes. Browse the Finger Probes page for articulated and rigid finger-probe families, or the Specialty Probes page for pin, rod, sphere, hook, telecom, and other clause-specific probe types.

ED&D test probe kits group together the core accessibility probes, impact tools, and related accessories commonly used in standards-driven electrical safety test programs. This product family includes the RAP-01 Rubber Accessibility Probe Kit, TPK-01, TPK-02, TPK-03, TPK-04, TPK-05, TPK-06, and the LVI-01 Electrical Contact Indicator.

ED&D TPK-01 Accessibility Probe Kit featuring jointed finger probe, impact test ball, test pin, and ball pressure tester in a foam-padded carrying case.

IEC 60950 IEC 60601 IEC 61010 IEC 60335 IEC 60529 IEC 60065 UL 60950 UL 1863

Request a Test Probe Kit Quote

RAP-01 Rubber Accessibility Probe Kit

The RAP-01 is used for modular-jack accessibility testing associated with UL 1863.

Set of 5 identical probes
Soft rubber construction
Designed for modular-jack insertion testing
Replace when damaged

Need a broader probe family instead of a dedicated kit?
Browse Finger Probes & Accessibility Test Probes or Specialty Test Probes.

Damaged probes should not be reused.

TPK Test Probe Kit Series

ED&D’s TPK probe kits are built around the core devices commonly required by specific standards families. These kits are positioned to provide substantial cost savings, reduce ordering complexity, and simplify day-to-day accessibility testing workflows by grouping the most commonly needed probes, balls, hooks, rods, and carrying cases into one package.

TPK-01 Test Probe Kit

The TPK-01 contains the devices listed in the core of UL / IEC / EN 60950 requirements.

TFP-01 IEC Jointed Finger Probe with banana jack in handle
ITB-01 50 mm Impact Test Ball
TPP-01 Test Pin Probe, short
UFP-02 Rigid Finger Probe
BPT-01 Ball Pressure Tester
TTP-01 Telecom Test Probe
Custom-cut foam padded carrying case
ISO/IEC 17025 accredited Certificate of Calibration with specific scope for Accessibility Probes

Meets requirements for testing standards including but not limited to IEC 60950, UL 60950, EN 60950, and CSA 950.

Want the included probes individually?
See Finger Probes for items like TFP-01 and UFP-02, and Specialty Probes for items like TPP-01 and TTP-01.

TPK-02 Test Probe Kit

TPK-02 Medical Test Probe Kit featuring the HLP-01 hazardous live parts probe, test hook, and jointed finger probe for medical device safety evaluation.

The TPK-02 contains the devices listed in the core of UL / IEC / EN 60601 requirements.

TFP-01 IEC Jointed Finger Probe with banana jack in handle
ITB-01 Impact Test Ball
TPP-01 Test Pin Probe, short
UFP-02 Rigid Finger Probe
BPT-01 Ball Pressure Tester
TH-01 Test Hook
HLP-01 4.0 mm Hazardous Live Parts Probe
Custom-cut foam padded carrying case
ISO/IEC 17025 accredited Certificate of Calibration with specific scope for Accessibility Probes

Meets requirements for testing standards including but not limited to IEC 60601, CSA 601, UL 2601, and EN 60601.

Need to buy from the kit à la carte?
Visit Finger Probes for TFP-01 and UFP-02, and Specialty Probes for TPP-01, TH-01, and HLP-01.

TPK-03 Test Probe Kit

The TPK-03 contains the devices listed in the core of IEC 61010 requirements.

TFP-01 IEC Jointed Finger Probe with banana jack in handle
TPP-01 Test Pin Probe, short
HLP-01 Hazardous Live Parts Probe
UFP-02 Rigid Finger Probe
PCP-01 Preset Controls Probe
BPT-01 Ball Pressure Tester
Custom-cut foam padded carrying case
NIST-traceable IEC/ISO 17025 accredited Certificate of Calibration with specific scope for Accessibility Probes
Uncertainty measurement data available separately

Meets requirements for testing standards including but not limited to IEC 61010.

Buying individual items instead?
Use Finger Probes for TFP-01 and UFP-02, and Specialty Probes for TPP-01, HLP-01, and PCP-01.

TPK-04 Test Probe Kit

The TPK-04 contains the devices listed in the core of UL / IEC / EN 60335 requirements.

TFP-01 IEC Jointed Finger Probe with banana jack in handle
TPP-01 Test Pin Probe, short
TPP-04 Test Pin Probe, long 50 mm
UFP-02 Rigid Finger Probe
THN-01 Test Thorn Probe
BPT-01 Ball Pressure Tester
Custom-cut foam padded carrying case
NIST-traceable IEC/ISO 17025 accredited Certificate of Calibration with specific scope for Accessibility Probes
Uncertainty measurement data available separately

Meets requirements for testing standards including but not limited to IEC 60335.

Prefer to build your own appliance probe set?
Browse Finger Probes for TFP-01 and UFP-02, and Specialty Probes for TPP-01, TPP-04, and THN-01.

TPK-05 Test Probe Kit

TPK-05 IP Code Test Probe Kit featuring 1.0mm test wire, 2.5mm test rod, and test sphere probes for ingress protection testing.

The TPK-05 was designed to provide the probes required by UL / IEC / EN 60529, the IP Code standard.

TFP-01 IEC Jointed Finger Probe with banana jack in handle
TRP-01 2.5 mm Test Rod
TRP-02 1.0 mm Test Wire
TSP-01 Test Sphere Probe with handle
TSP-02 Test Sphere Probe, small
NIST-traceable certificate included
ISO/IEC 17025 accredited calibration with data available for an additional fee
Custom-cut padded carrying case
One year warranty
Free expert-level technical support

Meets requirements for testing standards including but not limited to EN 60529 and IEC 60529.

Need IP probes individually?
See Finger Probes for TFP-01, and Specialty Probes for TRP-01, TRP-02, TSP-01, and TSP-02.

TPK-06 Test Probe Kit

TPK-06 comprehensive test probe kit in two padded carrying cases including child test fingers and multiple rod pin probes.

The TPK-06 is a broader legacy audio / video-oriented probe kit positioned around IEC 60065, EN 60065, and UL 6500 workflows.

TFP-01 IEC Jointed Finger Probe with banana jack in handle
CTF-01 Child Test Finger Probe / Probe 19 of IEC 61032
CTF-02 Child Test Finger Probe / Probe 18 of IEC 61032
TPP-01 Test Pin Probe, short
TPP-03 Test Pin Probe
TRP-02 1.0 mm Test Wire Probe / Test Probe D of IEC 61032
TRP-01 2.5 mm Test Rod Probe / Test Probe C of IEC 61032
UFP-01 Rigid Finger Probe
TH-01 IEC Test Hook with means for connection to force gauge
ITB-01 50 mm impact test ball with removable eyelet
ITB-04 Impact Test Ball with Rockwell Hardness R62+
TTP-01 Telecom Test Probe for accessibility to TNV circuits
CC-04 Two padded carrying cases
NIST-traceable Certificates of Calibration included
Measurement data sold separately

Meets requirements for testing standards including but not limited to EN 60065, IEC 60065, and UL 6500.

Need to source these legacy A/V probes separately?
Browse Finger Probes for TFP-01, CTF-01, CTF-02, and UFP-01, and Specialty Probes for TPP-01, TPP-03, TRP-01, TRP-02, TH-01, and TTP-01.

Need Individual Probes Instead of a Full Kit?

While ED&D test probe kits simplify ordering and reduce cost, many laboratories prefer to purchase individual probes to match specific standards, figures, or internal procedures.

If you already know the required probe, or if you are building a custom setup, you can browse the full probe catalog by probe family below.

Finger Probes & Accessibility Test Probes
Jointed and rigid finger probes for IEC, UL, CSA, and EN accessibility testing workflows.

View Finger Probes

Specialty Test Probes
Test pins, rods, spheres, wedges, telecom probes, hooks, and other clause-specific tools.

View Specialty Probes

Selection note: kits are grouped around common standards families, but individual probes should always be selected based on the exact standard, clause, and figure required by the test method.

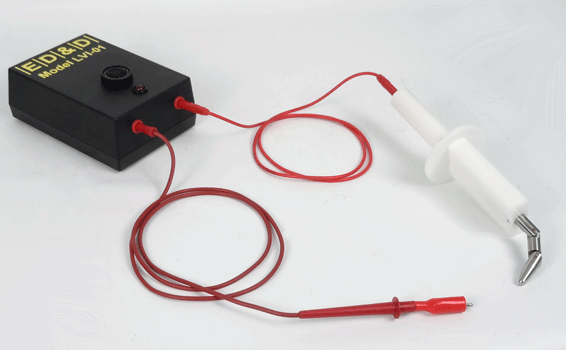

LVI-01 Electrical Contact Indicator

The LVI-01 Electrical Contact Indicator is an accessory used with the TFP-01 and other compatible finger probes to determine whether the probe is able to make electrical contact within the product under test.

Used with TFP-01 as an accessory
Probe / test finger must be purchased separately
Includes transformer: 230V / 42V, 25 mA, 50–60 Hz
Includes pilot lamp: 36–45V / 2W
Includes 2 connecting leads
Includes 2 tapping clips
Other voltages available by request

Used in many standards-driven accessibility workflows where electrical contact confirmation is required during probe testing.

Looking for the probe itself?
Browse Finger Probes to find compatible articulated and rigid probe options used with accessibility workflows.

The test finger is not included. The LVI-01 is an accessory, not a probe by itself.

Meets requirements for testing standards including but not limited to IEC 60335 and IEC 61032. The supplied source text also notes use according to IEC 60529, IEC 60598, and EN 60335.

Comparison

Model	Primary Use	Typical Standards Positioning
RAP-01	Modular-jack accessibility testing	UL 1863
TPK-01	Legacy IT / business-equipment probe kit	IEC / UL / EN 60950, CSA 950
TPK-02	Medical accessibility probe kit	IEC 60601, CSA 601, UL 2601, EN 60601
TPK-03	Lab-equipment accessibility probe kit	IEC 61010
TPK-04	Household-appliance accessibility probe kit	IEC 60335
TPK-05	IP Code probe kit	IEC / EN 60529
TPK-06	Legacy audio / video style probe kit	IEC / EN 60065, UL 6500
LVI-01	Electrical contact confirmation accessory	IEC 60335, IEC 61032 and other related workflows

Selection guidance: choose a kit when you want a grouped standards-based starting point, and use the Finger Probes and Specialty Probes pages when you need to buy individual probe models.

Frequently Asked Questions

What is a test probe kit?

A test probe kit is a grouped set of accessibility probes and related accessories assembled around a specific standards family or test program.

How do I choose between TPK-01, TPK-02, TPK-03, and TPK-04?

Start with the governing product standard: TPK-01 is positioned around legacy IT / business-equipment workflows, TPK-02 around medical workflows, TPK-03 around lab-equipment workflows, and TPK-04 around household appliance workflows.

What is the difference between TPK-05 and TPK-06?

TPK-05 is focused on IP Code access probes, while TPK-06 is a broader kit associated with IEC 60065, EN 60065, and UL 6500 legacy audio / video style workflows.

Can I buy individual probes instead of a full kit?

Yes. Browse Finger Probes for articulated and rigid finger-probe families, or Specialty Probes for pin, rod, sphere, hook, telecom, and other clause-specific probe types.

Do all kits include ISO/IEC 17025 accredited calibration?

Not all in exactly the same way. Some kits include accredited calibration, while others offer it as an option or as an added-data service. Confirm the exact documentation required before ordering.

Is the LVI-01 a probe?

No. The LVI-01 is an accessory used with a compatible test finger, such as the TFP-01, to help determine whether electrical contact is made inside the product under test.

Talk to ED&D About Probe Kits

Send the exact standards family and required figures, and we can help identify whether a standard kit or a custom configuration is the better fit.

Typical Test Probe Kit Applications

ED&D test probe kits are used across electrical safety laboratories, product certification programs, medical device test labs, household appliance test labs, IP-code verification environments, and legacy audio / video and IT product workflows.

Depending on the kit and product category, these workflows may relate to IEC 60950, UL 60950, EN 60950, CSA 950, IEC 60601, CSA 601, UL 2601, EN 60601, IEC 61010, IEC 60335, IEC 60529, EN 60529, IEC 60065, EN 60065, UL 6500, and UL 1863.

Legacy IT and business-equipment accessibility testing
Medical electrical equipment access testing
Laboratory and industrial equipment safety workflows

Household appliance accessibility and thorn-probe checks
IP Code rod, sphere, and finger access verification
Legacy audio / video and entertainment equipment testing

Modular-jack accessibility testing
Electrical contact confirmation with compatible finger probes
Replacement and expansion of individual probe inventories

Need individual probes for these workflows? Use Finger Probes and Specialty Probes to drill down into model-specific selections.

Selection note: kit selection should always be confirmed against the specific edition and probe figures called out in the governing standard or laboratory procedure.
